Header Shear Connector - Arc Weld Stud
For a quote or to order, please specify: | |||
---|---|---|---|
Product Code: | Diameter: | Length: | Material: |
HSC | Specify D | Specify L | Specify |
For a quote or to order, please specify: | |||
---|---|---|---|
Product Code: | Diameter: | Length: | Material: |
HSC | Specify D | Specify L | Specify |

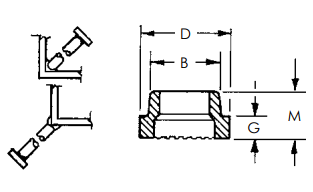

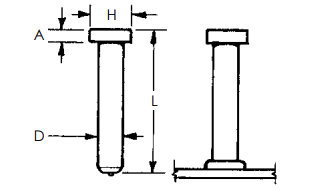

Stud Specifications | Ferrule Specifications | ||||||
---|---|---|---|---|---|---|---|
D | H | A | No. | D | B | G | M |
3/4 | 1-1/4 | 3/8 | F075-F | 1.218 | 1.030 | .469 | .656 |
3/4 * | 1-1/4 | 3/8 | F075-TD | 1.335 | 1.210 | .406 | .600 |
7/8 | 1-3/8 | 3/8 | F087-F | 1.406 | 1.210 | .545 | .732 |
1 | 1-5/8 | 1/2 | F100-F | 1.610 | 1.406 | .632 | .820 |
* For 3/4" weld thru-deck only |
Headed Shear Connectors are designed for composite construction to secure the concrete to the steel beams and to resist shear loadings between the concrete slab and steel beam.
Specifications – HSC’s meet AWS Specifications D1.1, D1.5 and or D1.6. International Specifications BS5950, BS5400, DIN/ISO are available.
Material – Low carbon steel, ASTM A108 / A29, Grade C1010 to C1020. In Stainless Steel, grades 302, 304, 310 and 316 are stocked in some sizes.
Ferrules – Customer to specify ferrule type at time of order.
Length – Lengths are listed before welding. For Stud Diameters (D) 3/4" and 7/8" the length reduction is roughly 3/16" and for (D) 1" the reduction is roughly 1/4". For Weld Thru-deck the length reduction is roughly 3/8". HSC’s can be made in any length above the standard minimum. The standard stock lengths are usually the most cost effective option.
Mechanical Property Requirements | ||
---|---|---|
Type A | Type B | |
Tensile Strength | 61,000 psi min. | 65,000 psi min. |
Yield Strength | 49,000 psi min. | 51,000 psi min. |
Elongation (% in 2 in.) | 17% min. | 20% min. |
Elongation (% in 5x dia.) | 14% min. | 15% min |
Reduction of Area | 50% min. | 50% min. |
Type A Studs are general purpose studs. | ||
Type B Studs are headed, bent, or of other configuration that are used as an essential component in composite beam design and construction. |
Headed Concrete Anchors are available for welding to flat surfaces, inside angles, and outside angles. Each of these applications requires the proper style stud and ferrule, so please specify your application when ordering.
Stud Diameter | Chuck P/N | Ferrule Type | Ferrule P/N | Foot P/N | Grip P/N | Ferrule Foot Plate P/N (Dual Leg) |
---|---|---|---|---|---|---|
3/4 | CH-075 | Flat | F075-F | B-2C | GC-075 | QN-075 |
Low Profile | F075-LP | B-2C | GC-075 | QN-075 | ||
Vertical | F075-V | B-2C | GC-075 | QN-075 | ||
Inside Angle | F075-IA37 | B-2C | GD-075 | N/A | ||
Inside Angle | F075-IA50 | B-2C | GD-075 | N/A | ||
Outside Angle | F075-OA | B-2C | GC-075 | QN-075 | ||
Weld Thru Deck (WTD) | F075-TD | B-0021 | B-0060-1 | N/A | ||
7/8 | CH-087 | Flat | F087-F | B-3C | GC-087 | QN-087 |
Vertical | F087-V | B-3C | GC-087 | QN-087 | ||
Outside Angle | F-087-OA | B-3C | GC-087 | QN-087 | ||
Weld Thru Deck (WTD) | F087-TD | B-0021 | B-0060-4 | N/A | ||
1 inch | CH-100 | Flat | F100-F | B-3C | GC-100 | QN-100 |
Flat | F100-F | B-0021 | B-0060-4 | QN-100 |
Specifications | Packaging Detail | Weights - in pounds | ||||||
---|---|---|---|---|---|---|---|---|
Diameter | Length | SSW Part Number (mild steel) | Pieces Per Box | Boxes Per Pallet | Pieces Per Pallet | Box Weight | Pallet Weight | 1,000 Pcs. Weight |
D | L | |||||||
Typical Bare Beam Sizes | ||||||||
3/4 | 3 - 3/16 | HSC0750318 | 125 | 48 | 6,000 | 60 | 2,880 | 480 |
3 - 11/16 | HSC0750368 | 100 | 48 | 4,800 | 55 | 2,640 | 550 | |
4 - 3/16 | HSC0750418 | 100 | 48 | 4,800 | 63 | 3,024 | 630 | |
4 - 11/16 | HSC0750468 | 75 | 27 | 2,025 | 51 | 1,377 | 680 | |
5 - 3/16 | HSC0750518 | 60 | 48 | 2,880 | 43 | 2,064 | 717 | |
5 - 11/16 | HSC0750568 | 60 | 48 | 2,880 | 47 | 2,256 | 783 | |
6 - 3/16 | HSC0750618 | 60 | 48 | 2,880 | 51 | 2,448 | 850 | |
6 - 11/16 | HSC0750668 | 80 | 27 | 2,160 | 75 | 2,025 | 938 | |
7 - 3/16 | HSC0750718 | 60 | 27 | 1,620 | 59 | 1,593 | 983 | |
8 - 3/16 | HSC0750818 | 50 | 27 | 1,350 | 56 | 1,512 | 1,120 | |
9 - 3/16 | HSC0750918 | 100 | 9 | 900 | 123 | 1,107 | 1,230 | |
10 - 3/16 | HSC0751018 | 100 | 9 | 900 | 137 | 1,233 | 1,370 | |
12 - 3/16 | HSC0751218 | 1,100 | 1 | 1,100 | 1,760 | 1,760 | 1,600 | |
16 - 3/16 | HSC0751618 | 1,000 | 1 | 1,000 | 2,000 | 2,000 | 2,000 | |
Typical Weld Thru-Deck Sizes | ||||||||
3/4 | 3 - 3/8 | HSC0750337 | 125 | 48 | 6,000 | 62 | 2976 | 496 |
3 - 7/8 | HSC0750387 | 100 | 48 | 4,800 | 58 | 2,784 | 580 | |
4 - 3/8 | HSC0750437 | 100 | 48 | 4,800 | 62 | 2.976 | 620 | |
4 - 7/8 | HSC0750487 | 75 | 48 | 3,600 | 51 | 2,448 | 680 | |
5 - 3/8 | HSC0750537 | 60 | 48 | 2,880 | 45 | 2,160 | 750 | |
5 - 7/8 | HSC0750587 | 60 | 48 | 2,880 | 49 | 2,352 | 817 | |
6 - 3/8 | HSC0750637 | 60 | 48 | 2,880 | 53 | 2,544 | 883 | |
For non standard sizes, please contact Sunbelt Stud Welding. |
Specifications | Packaging Detail | Weights - in pounds | ||||||
---|---|---|---|---|---|---|---|---|
Diameter | Length | SSW Part Number (mild steel) | Pieces Per Box | Boxes Per Pallet | Pieces Per Pallet | Box Weight | Pallet Weight | 1,000 Pcs. Weight |
D | L | |||||||
7/8 | 3 - 3/16 | HSCM0870318 | 100 | 27 | 2,700 | 66 | 1,782 | 660 |
3 - 11/16 | HSCM0870368 | 100 | 27 | 2,700 | 74 | 1,998 | 740 | |
4 - 3/16 | HSCM0870418 | 100 | 27 | 2,700 | 80 | 2,160 | 800 | |
5 - 3/16 | HSCM0870518 | 75 | 27 | 2,025 | 73 | 1,971 | 973 | |
6 - 3/16 | HSCM0870618 | 50 | 27 | 1,350 | 57 | 1,539 | 1,140 | |
7 - 3/16 | HSCM0870718 | 45 | 27 | 1,215 | 59 | 1,593 | 1,311 | |
8 - 3/16 | HSCM0870818 | 40 | 27 | 1,080 | 59 | 1,593 | 1,475 | |
9 - 3/16 | HSCM0870918 | 75 | 9 | 675 | 125 | 1,125 | 1,667 | |
10 - 3/16 | HSCM0871018 | 75 | 9 | 675 | 135 | 1,215 | 1,800 | |
12- 3/16 | HSCM0871218 | 825 | 1 | 825 | 1,793 | 1,793 | 2,173 | |
1 inch | 3 - 1/4 | HSCM1000325 | 100 | 27 | 2,700 | 74 | 1,998 | 740 |
4 - 1/4 | HSCM1000425 | 100 | 27 | 2,700 | 80 | 2,160 | 800 | |
5 - 1/4 | HSCM1000525 | 75 | 27 | 2,025 | 73 | 1,971 | 973 | |
6 - 1/4 | HSCM1000625 | 50 | 27 | 1,350 | 57 | 1,539 | 1,140 | |
7 - 1/4 | HSCM1000725 | 45 | 27 | 1,215 | 59 | 1,593 | 1,311 | |
8 - 1/4 | HSCM1000825 | 40 | 27 | 1,080 | 59 | 1,593 | 1,475 | |
9 - 1/4 | HSCM1000925 | 75 | 9 | 675 | 125 | 1,125 | 1,667 | |
10 - 1/4 | HSCM1001025 | 50 | 9 | 950 | 125 | 1,125 | 2,500 | |
12- 1/4 | HSCM1001225 | 600 | 1 | 6000 | 1760 | 1,760 | 2,934 | |
For non standard sizes contact Sunbelt Stud Welding. |
